Polyurethane Cold Storage Sliding Doors: The Perfect Combination of High Efficiency and Durability

1. Core Advantages of Polyurethane Cold Storage Sliding Doors

1.1 Exceptional Thermal Insulation

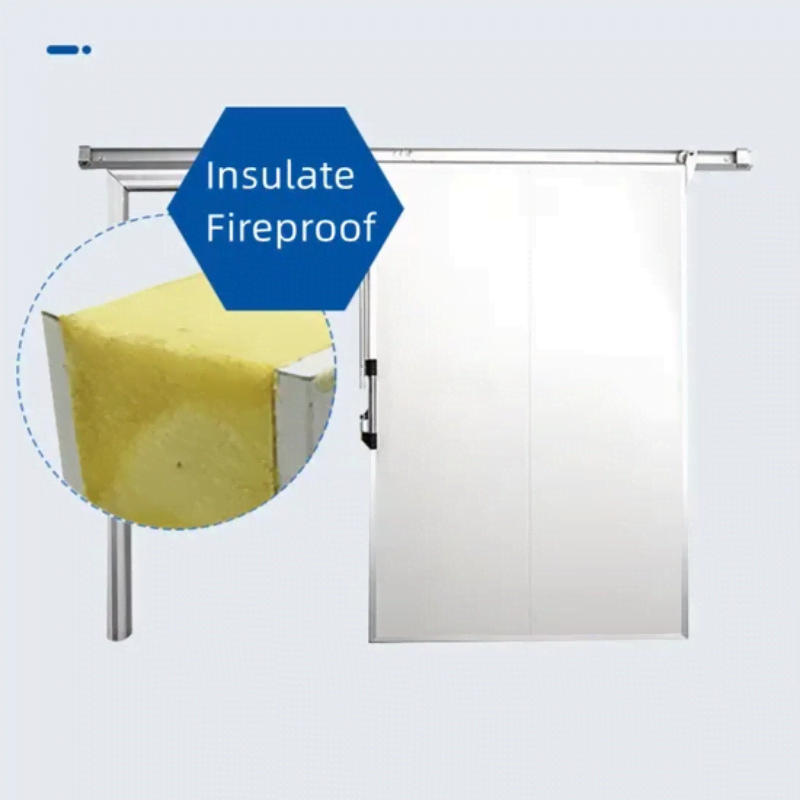

Polyurethane is a closed-cell foam material with an ultra-low thermal conductivity of 0.022 W/(m·K), far superior to standard foam or metal materials. This effectively blocks heat exchange between the inside and outside of the cold storage, reducing energy consumption. For example, in a -25°C environment, a 100mm-thick polyurethane door can reduce cold loss by approximately 35% compared to conventional doors.

1.2 High Strength and Durability

Polyurethane-filled door panels are lightweight yet highly robust, with a compressive strength exceeding 150 kPa. Reinforced with aluminum or stainless steel frames, they resist deformation even under prolonged use. Equipped with heavy-duty rails and motorized drive systems, these doors can withstand frequent operation (over 1,000 cycles per day) and last 10–15 years.

1.3 Superior Airtightness

Double-layer sealing strips (EPDM or silicone) along the door edges minimize air leakage (below 5 W/m²), preventing frost buildup and energy waste. High-end models may also feature automatic bottom seals that press firmly against the ground when closed, further reducing cold air leakage.

2. Key Specifications and Selection Guide

2.1 Main Technical Parameters

• Door Thickness: Common options include 80mm, 100mm, and 120mm. Thicker doors provide better insulation but must be selected based on storage temperature (for -18°C or lower, 100mm+ is recommended).

• Opening/Closing Speed: 0.3–1.0 m/s. High-speed doors suit logistics hubs with frequent access, while slower doors prioritize sealing.

• Temperature Resistance: Operational range of -40°C to +50°C, with some models capable of withstanding strong winds (50 kg/m² wind pressure).

• Motor Power: Typically 0.75–1.5 kW, depending on door size and weight.

2.2 Selection Recommendations

• Food Cold Storage: Opt for doors with insect screens and easy-to-clean coatings to prevent contamination.

• Pharmaceutical Storage: Must comply with GMP standards, featuring seamless designs and antimicrobial seals.

• Logistics Centers: Prioritize fast-sliding doors (opening/closing time ≤10 seconds) to enhance operational efficiency.

3. Real-World Applications and Case Studies

3.1 Food Processing Plants

A large meat processing plant reduced its monthly energy consumption by 28% after switching to polyurethane sliding doors, while frost accumulation at door edges decreased by 90%, significantly cutting defrosting costs.

3.2 Pharmaceutical Cold Chain Warehouses

Pharmaceutical storage requires strict temperature control. With polyurethane doors, temperature stability improved to ±0.5°C, meeting the stringent 2–8°C requirements for vaccine storage.

3.3 Supermarket Distribution Centers

In high-traffic environments, fast-sliding doors increased daily operation cycles from 500 to 1,200 while reducing failure rates by 60%.

4. Maintenance and Care Guidelines

• Regular Seal Inspection: Clean every quarter; replace if worn.

• Rail Lubrication: Apply low-temperature grease monthly to prevent freezing and jamming.

• Motor Maintenance: Check gearbox oil levels annually to ensure smooth operation.

FAQ (Frequently Asked Questions)

Q1: How much more expensive are polyurethane cold storage doors compared to standard doors?

A1: Initial costs are 20–30% higher, but energy savings and reduced maintenance typically result in a 2–3 year payback period.

Q2: Can sliding doors operate in extremely low temperatures (-40°C)?

A2: Yes, but they must use cold-resistant seals (e.g., silicone) and motors rated for -40°C.

Q3: Are safety sensors necessary?

A3: Yes. Photoelectric sensors or collision bars are mandatory to prevent accidents involving personnel or forklifts, complying with OSHA/CE safety standards.

Q4: What factors affect the door’s lifespan?

A4: Key factors include usage frequency, maintenance, and environmental humidity. Regular upkeep can extend service life beyond 15 years.

In summary, polyurethane cold storage sliding doors are an ideal solution for improving energy efficiency and reducing long-term operational costs, particularly in applications demanding precise temperature control and durability.
