Industrial Overhead Doors: Space Requirements for Different Lift Types

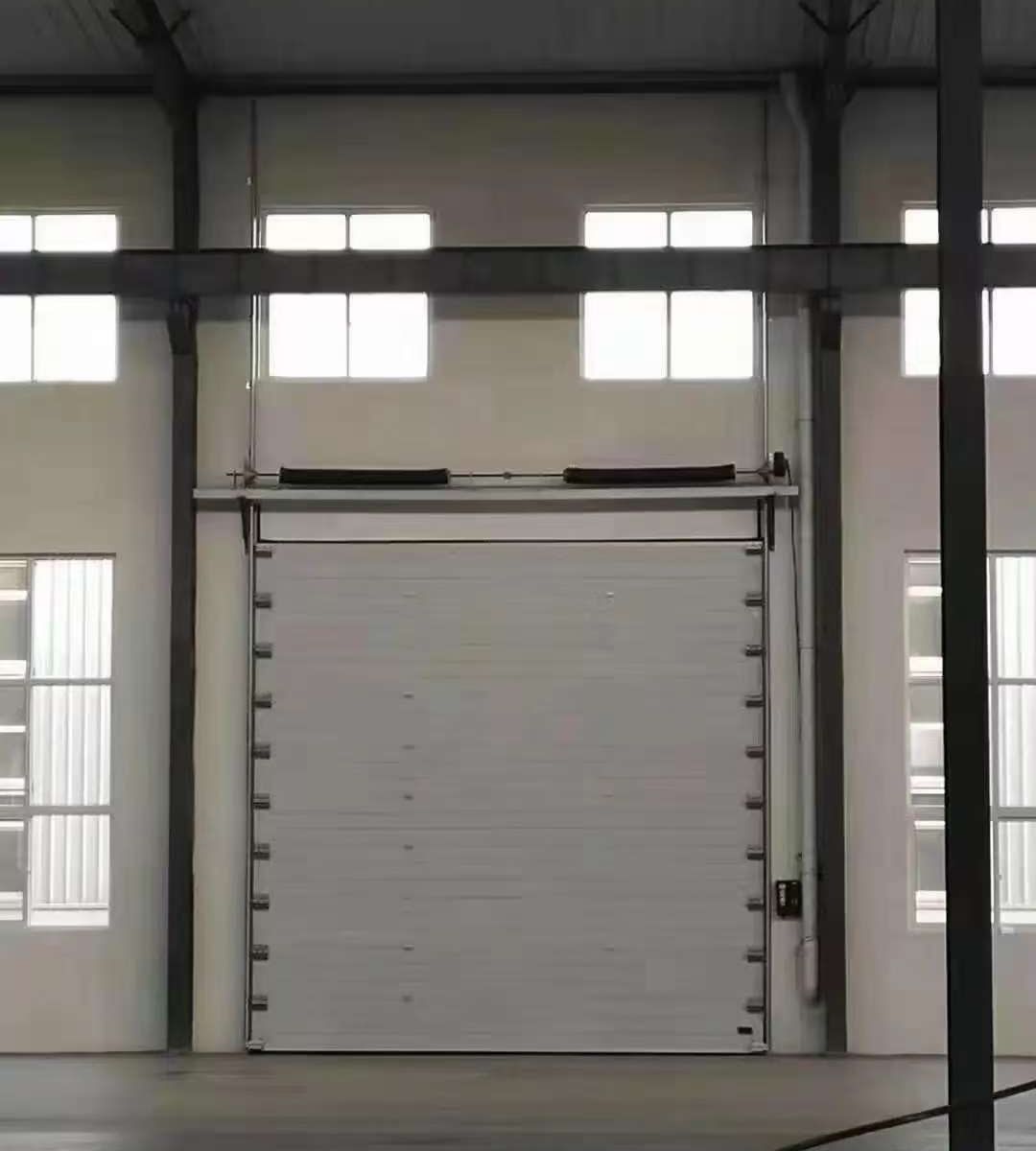

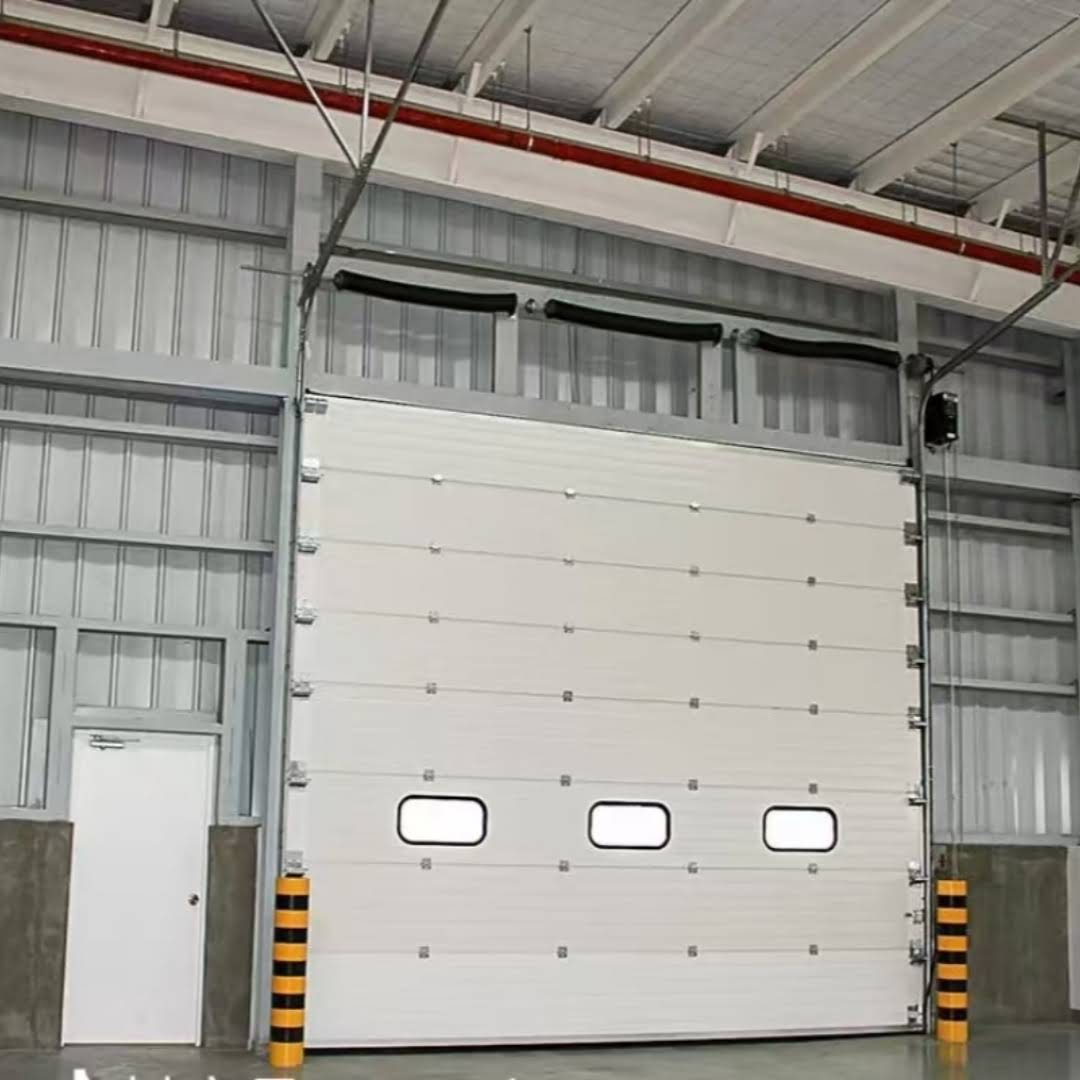

1. Vertical Lift

• Mechanism: The door panels rise straight up, parallel to the opening.

• Headroom Requirement:

• Door height + 300–500 mm (for the drive system and track clearance).

• Suitable for high-ceiling spaces (e.g., warehouses, factories).

• Features:

• No horizontal tracks, saving side space but requiring strict overhead clearance.

2. Standard Lift

• Mechanism: The door rises vertically before turning horizontally (typically 90°) along the ceiling.

• Headroom Requirement:

• Vertical section: 40–50% of door height (e.g., 1.6–2 m for a 4 m door).

• Horizontal section: Door width + ~300 mm (for track extension).

• Total height: Vertical section + horizontal track thickness (~200 mm).

• Features:

• Balances vertical and horizontal space, ideal for medium-height ceilings.

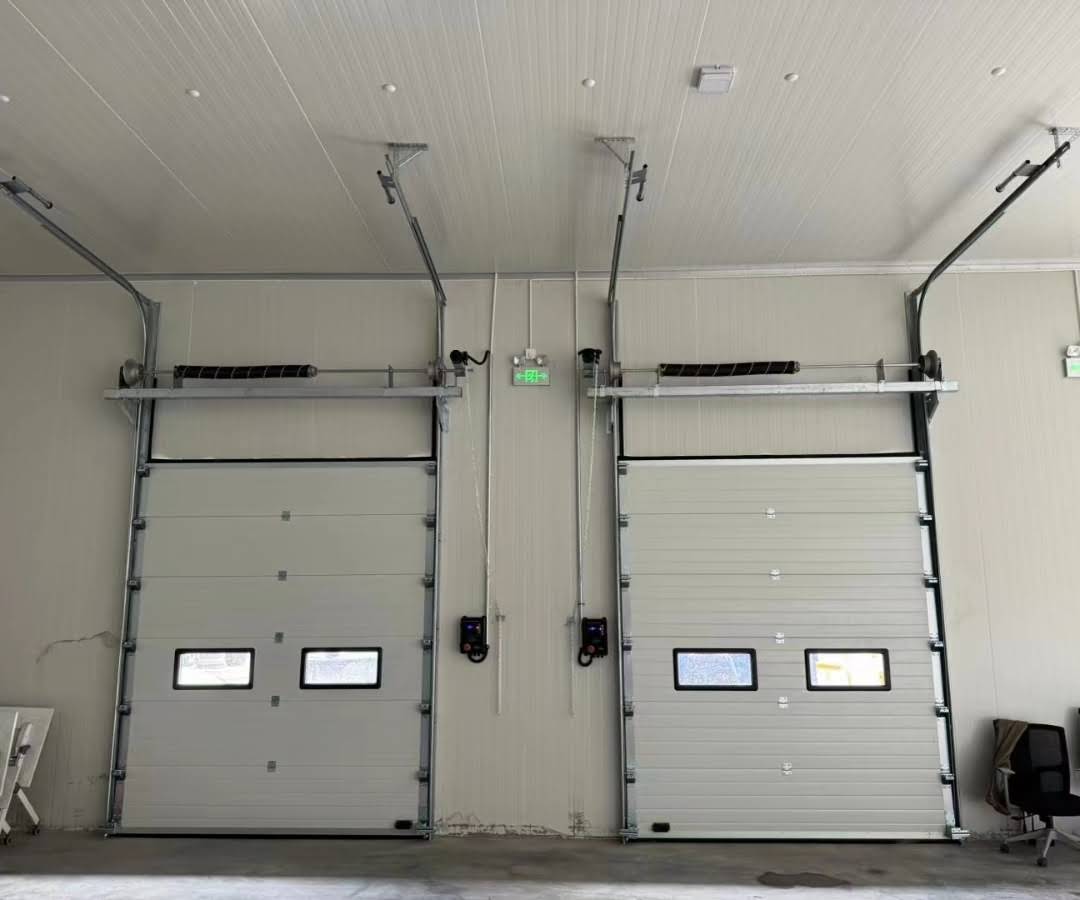

3. High Lift

• Mechanism: The door rises higher before turning horizontally, with tracks closer to the ceiling.

• Headroom Requirement:

• Vertical section: Customizable (typically ≥1.5× door height).

• Horizontal section: Door width + ~300 mm.

• Used where maximum clearance is needed (e.g., truck loading).

• Features:

• Higher vertical lift, optimized for tall ceilings.

4. Low Headroom Lift

• Mechanism: Curved or tight-radius tracks minimize vertical space usage.

• Headroom Requirement:

• Only 150–300 mm (tracks hug the ceiling).

• Horizontal extension ≈ door width.

• Features:

• Best for low ceilings (e.g., basements, garages).

5. Other Variants (Side Roll-Up, Fold-Up)

• Side Roll-Up: Tracks run along the wall; headroom similar to standard lift.

• Fold-Up: Panels stack vertically, requiring ~1/3 of door height in clearance.

Comparison Table

Selection Tips

• Measure overhead clearance before choosing a lift type.

• Consider traffic needs: High lift for large vehicles, low headroom for tight spaces.

• Factor in drive systems: Torsion springs and motors may need extra space.

Consult a professional supplier for site-specific assessments, factoring in door dimensions, building structure, and safety standards (e.g., fire codes).

Q&A

Q1: Which lift type requires the least overhead space?

A1: Low headroom lift (only 150–300 mm).

Q2: What is the advantage of a high lift door?

A2: It maximizes vertical clearance, ideal for tall vehicles.

Q3: Can a standard lift door be used in low-ceiling areas?

A3: No, it requires at least 40–50% of door height vertically.

Q4: Do vertical lift doors need horizontal track space?

A4: No, they rise straight up without horizontal tracks.
