Small Blade Turbine Speed Door: Tailored to Your Specific Needs

  • category:Niue Aluminum Spiral Door
    Small Blade Turbine Door (or Turbine Rigid Door is an industrial door that combines high speed, high strength and tightness, an...
    Service Hotline: +8617538627299
  • Product Details

  • contact us

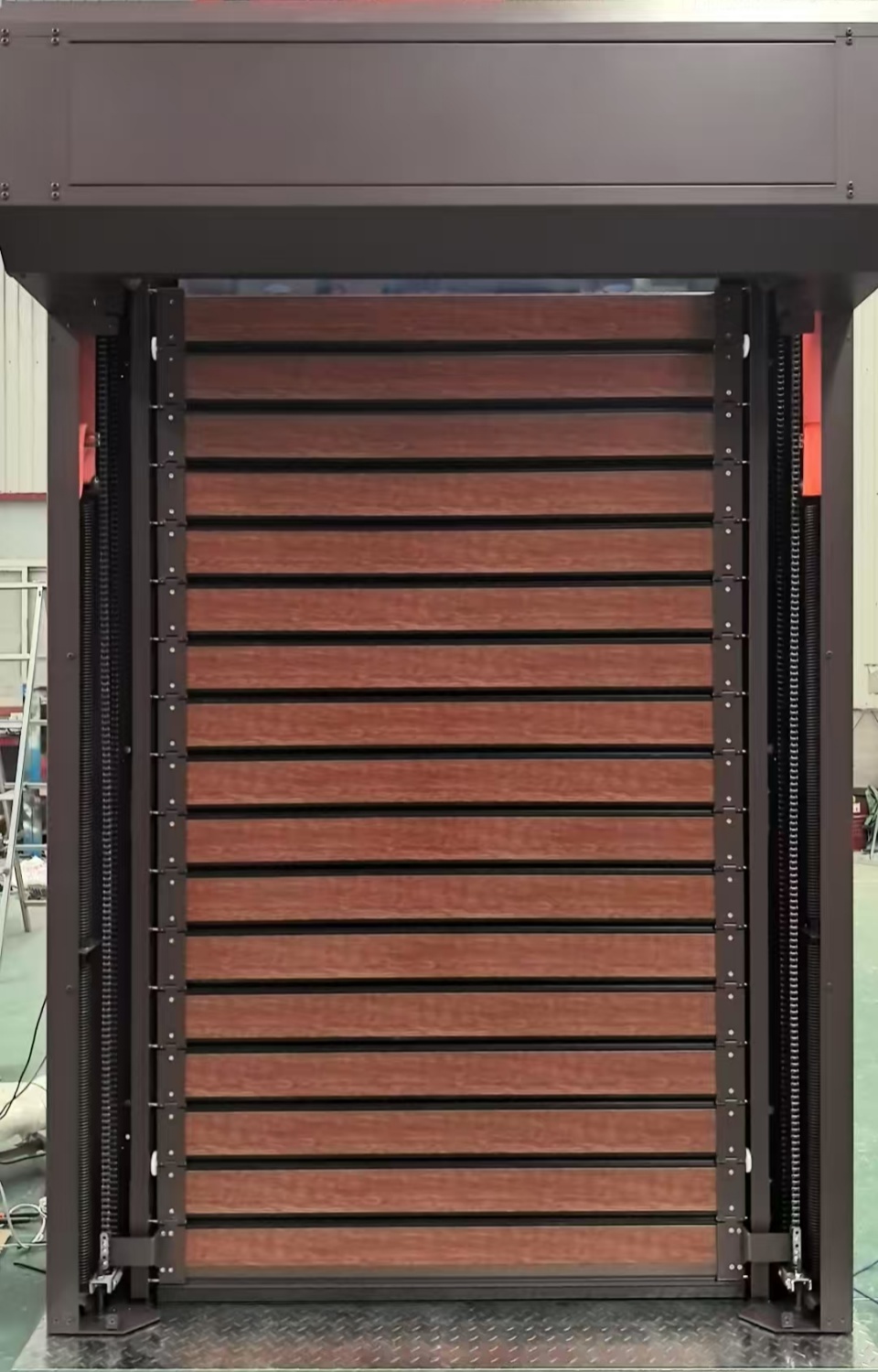

Small Blade Turbine Door (or Turbine Rigid Door) is an industrial door that combines high speed, high strength and tightness, and is designed for frequent opening and closing of logistics channels. Its core feature is to optimize the winding structure of the traditional roller shutter door into a turbine-driven segmented door system to achieve efficient, safe and energy-saving operation.

Small door plate turbine fast door 6.jpg

1. Efficient opening and closing
◦ The opening speed is 1.8-2.5m/s, which is suitable for high-frequency traffic scenarios (such as logistics channels), and can run more than 1500 times a day.
2. Security protection
◦ Multiple protection: standard infrared photoelectric induction, wireless safety bottom edge (0.3 seconds rebound in case of resistance), light curtain (optional) to prevent pinching
◦ Anti-collision design: Built-in pressure-sensitive adhesive strip at the bottom of the door, automatic rebound in the event of a collision.
3. Energy saving and environmental protection
◦ Thermal insulation: The thermal conductivity of the polyurethane foam layer ≤ 0.022W/(m·K), which reduces indoor and outdoor heat exchange, and saves energy by 30%.
◦ Sealing: Quadruple EPDM rubber seal, effectively blocking dust and noise (outdoor noise reduced by 80%).
4. Spatial adaptability
◦ Compact design: the top installation height is only 900mm, and the lateral reservation is 350mm, saving building space
◦ Customized track: support L-shaped, S-shaped, vertical and other installation schemes to adapt to complex sites.

Small door plate turbine fast door 3.jpg

Typical application scenarios
• Logistics and warehousing: factory entrances and exits, three-dimensional garages, to meet the needs of high-speed traffic and anti-theft.
• Clean environment: Pharmaceutical and food workshops, with high sealing to block contaminants
• Extreme climate zone: wind pressure resistance (resisting 12 winds), thermal insulation performance, suitable for cold storage or high temperature workshop

Small door plate turbine fast door 5.jpg

Through the innovative combination of turbine drive and hard door blade, the small door turbine fast door solves the core needs of high-speed traffic, wind resistance and thermal insulation, and safety protection in industrial scenarios, and has become the preferred isolation solution for modern workshops, garages and clean workshops. Its modular design and intelligent expansion capabilities further enhance applicability and reliability
