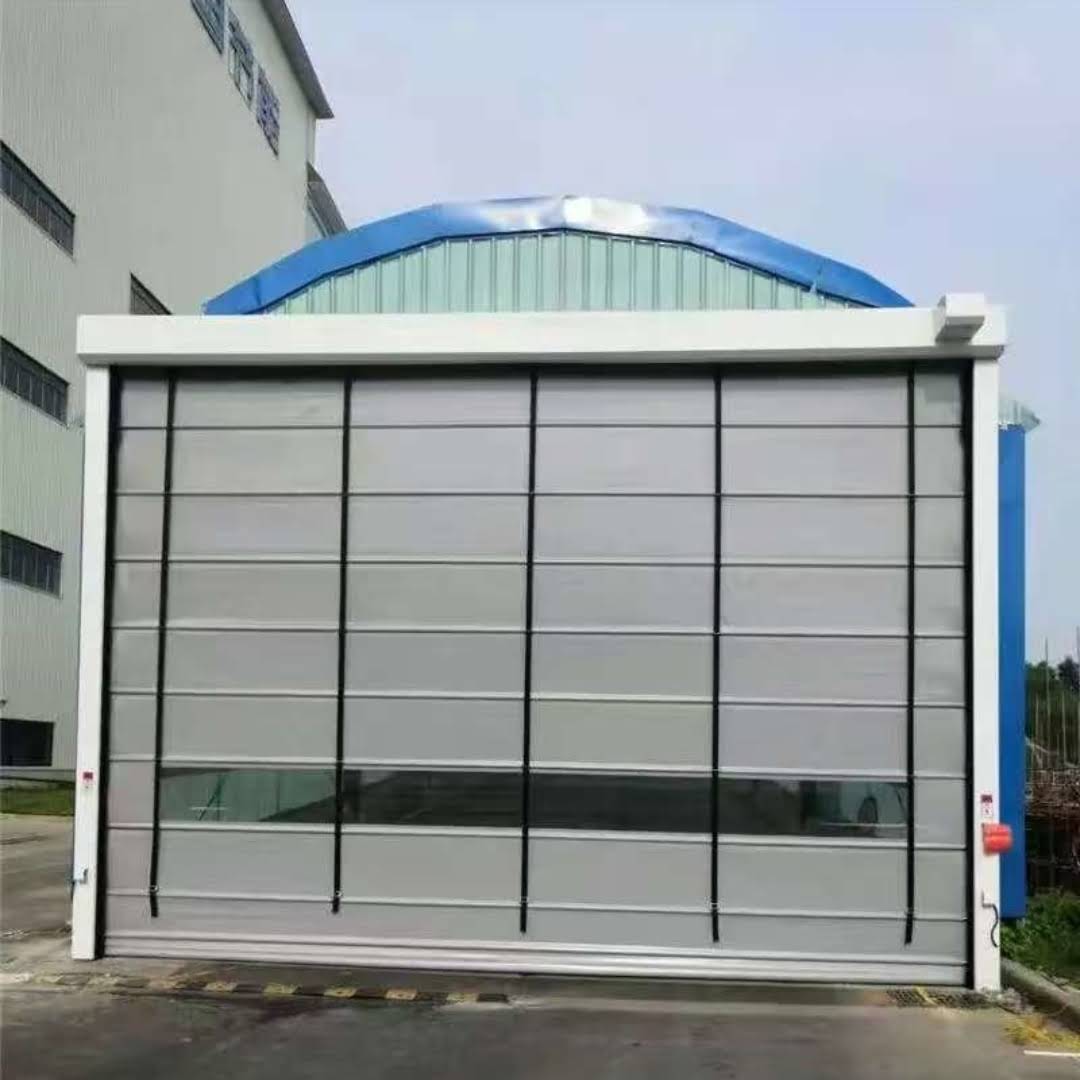

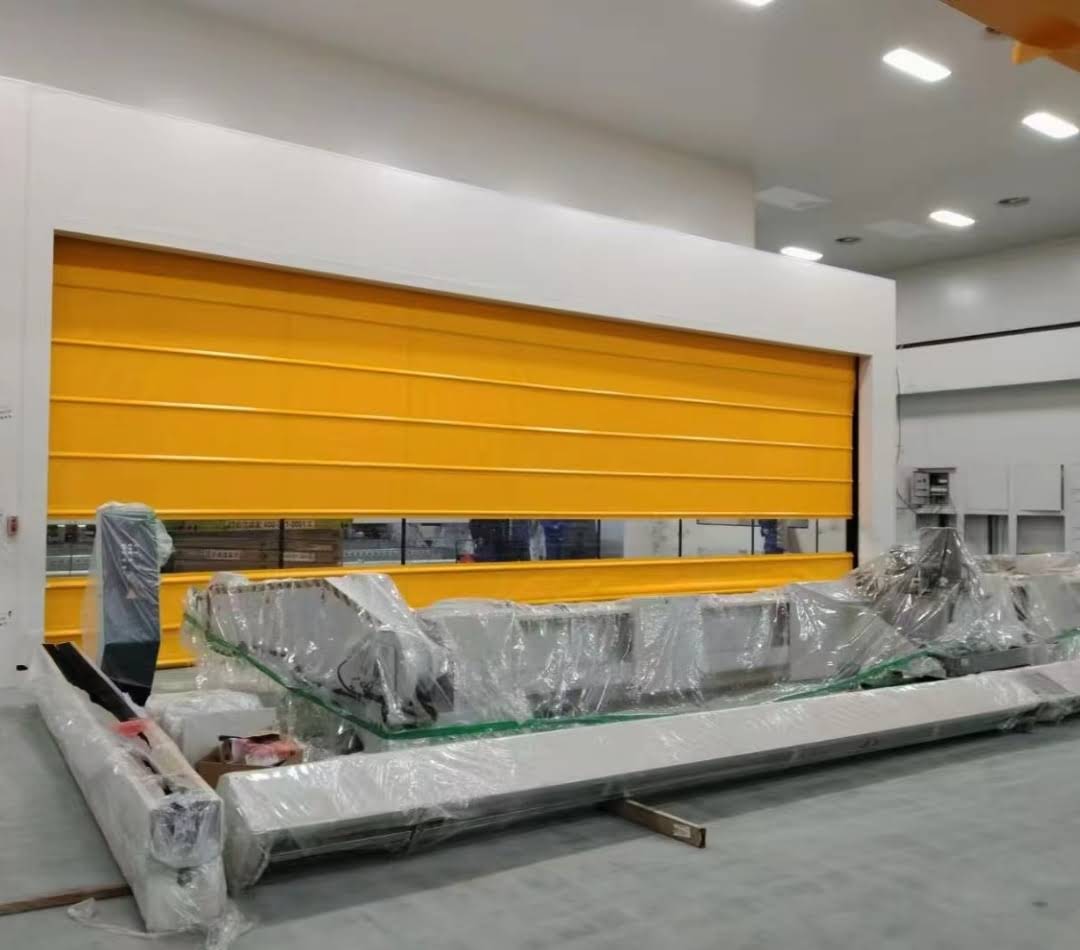

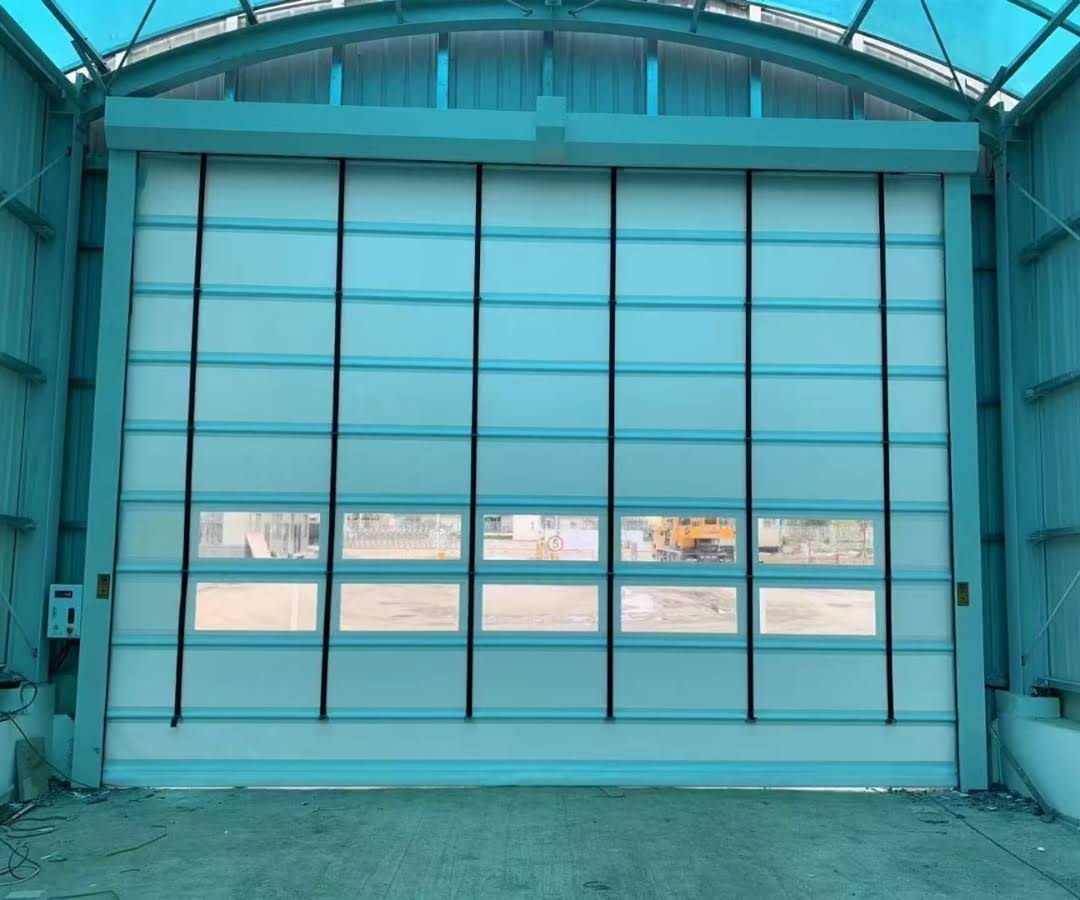

Why Do PVC Rapid Roll-up Doors / Stacking Doors Require More Space Above the Door Opening?

1. Door Curtain Stacking Storage Requirement

• Multi-layer curtain folding: When opening, the door curtain folds horizontally and stacks vertically above the door opening. This design requires sufficient overhead space to accommodate the folded curtain (typically 1/3 to 1/2 of the door height).

• Increased thickness when folded: The PVC curtain consists of multiple flexible layers, and when folded, their combined thickness takes up more space. For example, a 6-meter-high door may require 0.8–1.2 meters of overhead space when stacked.

2. Guide Rail & Balancing System

• Inclined/curved rail design: The rails are often angled or curved to ensure smooth folding, improving opening speed but increasing space usage.

• Counterweight/spring system: Some models use springs or counterweights to balance the curtain, requiring additional installation space.

3. Drive Mechanism Installation

• Motor & transmission components: The motor, chain, or belt drive system is usually mounted horizontally above the door, requiring extra space (approx. 200–300 mm).

4. Safety & Wind Resistance Features

• Reinforcement beams: Industrial rapid roll-up doors may need overhead reinforcement (e.g., aluminum or steel beams) for wind resistance.

• Safety sensors: Photoelectric sensors or emergency stop devices also require wiring space.

5. Comparison with Other Door Types

• vs. high-speed roller doors: Roller doors coil around a drum (~0.3–0.5m diameter), while stacking doors need more space due to folding.

• vs. sectional overhead doors: Sectional doors slide horizontally along the ceiling, requiring high clearance but operating slower.

Space-Saving Solutions (If Limited Space)

• Low-headroom models: Some manufacturers offer compact designs with optimized rail curvature.

• External/side-mounted motors: Relocate the motor to the side (customization needed).

• Reduced curtain layers: Thinner folding (may reduce insulation/noise resistance).

Conclusion

PVC rapid stacking doors trade overhead space for high-speed operation , wind resistance, and durability, making them ideal for industrial use. When designing, consider door height and available space, or consult suppliers for customized solutions.

Q&A

Q1: How much space is needed above the door for a PVC stacking door?

A1: Typically 1/3 to 1/2 of the door height (e.g., 0.8–1.2m for a 6m door).

Q2: Can a stacking door work with low overhead space?

A2: Yes, some models have low-headroom designs, but opening speed may be slightly reduced.

Q3: Why not use a roller door instead?

A3: Roller doors save space but are less wind-resistant and durable for high-frequency industrial use.

Q4: How to reduce the required overhead space?

A4: Opt for low-headroom models, side-mounted motors, or thinner curtain materials.
