The manufacturer directly supplies the automatic door sensor switch radar sensor
- category:Malta Product Categories
Implementation technology: microwave and microprocessorTransmitting frequency: 24.125GHzTransmit power: <20dBm EIRPEmission f...
-
Product Details
-
contact us

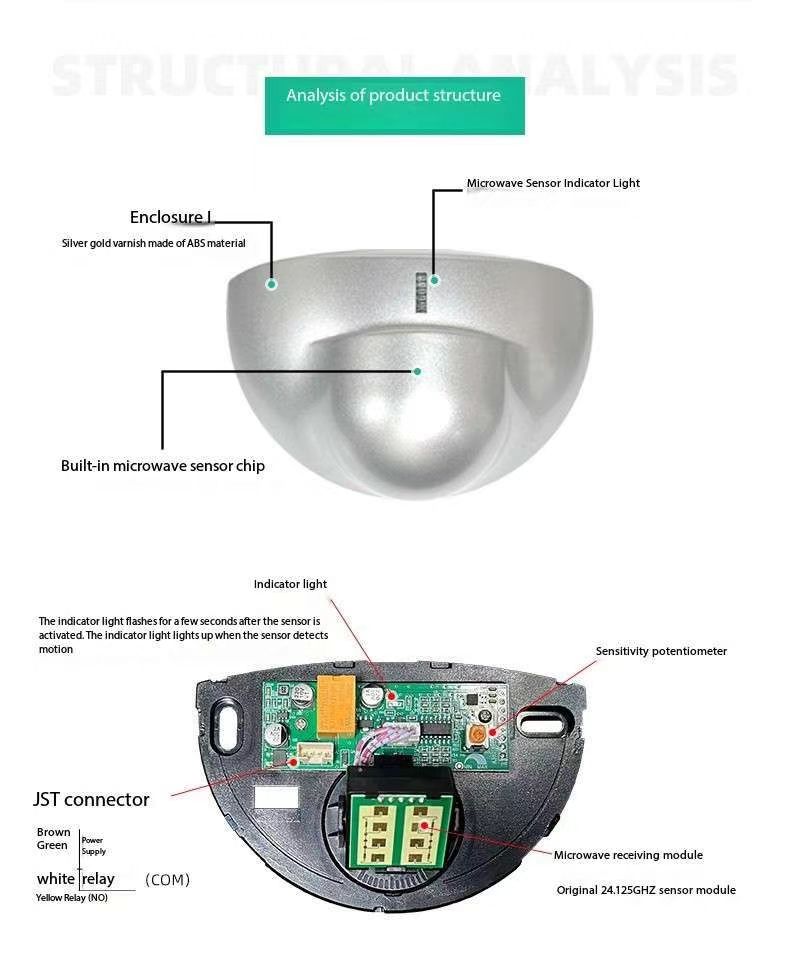

Implementation technology: microwave and microprocessor
Transmitting frequency: 24.125GHz
Transmit power: <20dBm EIRP
Emission frequency density: <5mW/cm2
Large installation height: 5 meters
Inclination: 0 to 90° (portrait) 30 to +30 (landscape)
Detection range (installation height = 2.2 meters): 4 meters (width) X 2 meters
Detection Mode: Motion
Small detection speed: 5cm/s (along the longitudinal axis of the sensor)
Supply Voltage: 12V to 30VAC/DC30%10%
Power frequency: 50 to 60HZ
Power consumption: <2W (VA)
Relay output (no initial potential)
Large contact voltage: 30V AC/DC
Large contact current: 1A (resistance)
Large switching power: 30W(DC)/60VA(AC)
Temperature range: 20°C to +55°C
Degree of protection: IP54
Anti-interference performance: R&TTE1999/5/EC; EMC 2004/108/EC
Housing material; ABS plastic

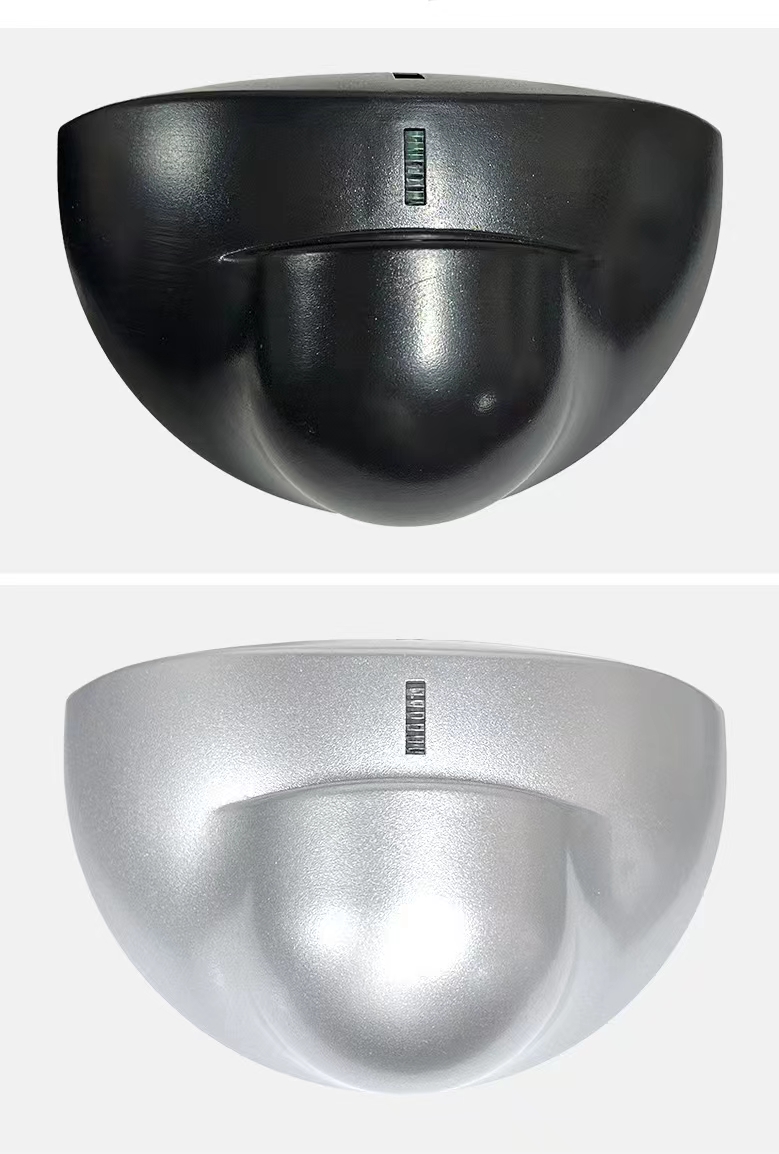

Housing Color: Black; silver gray

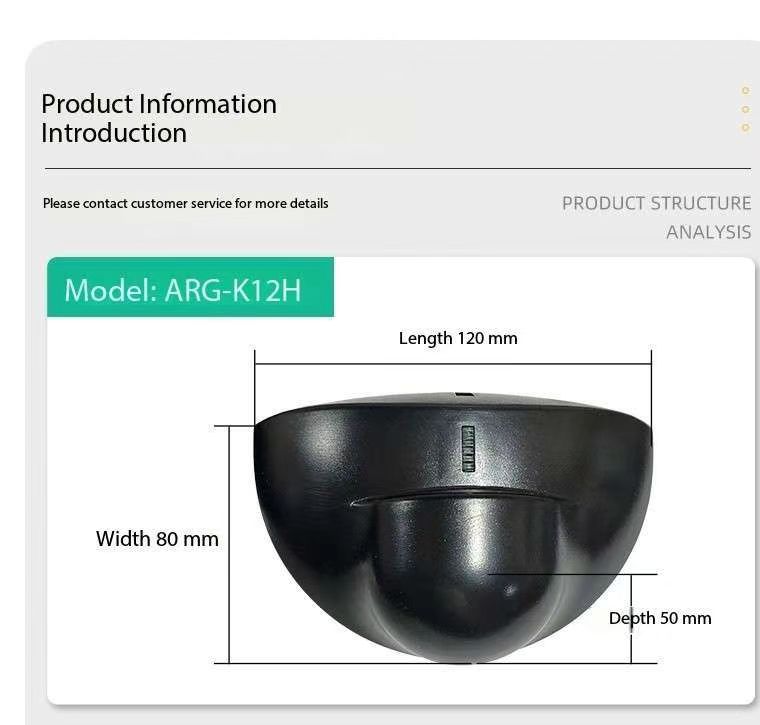

Case size: 120mm(W)X80mm(H)X50mm(D)
Weight: 0.215 kg
Wire length: 2.2 m
