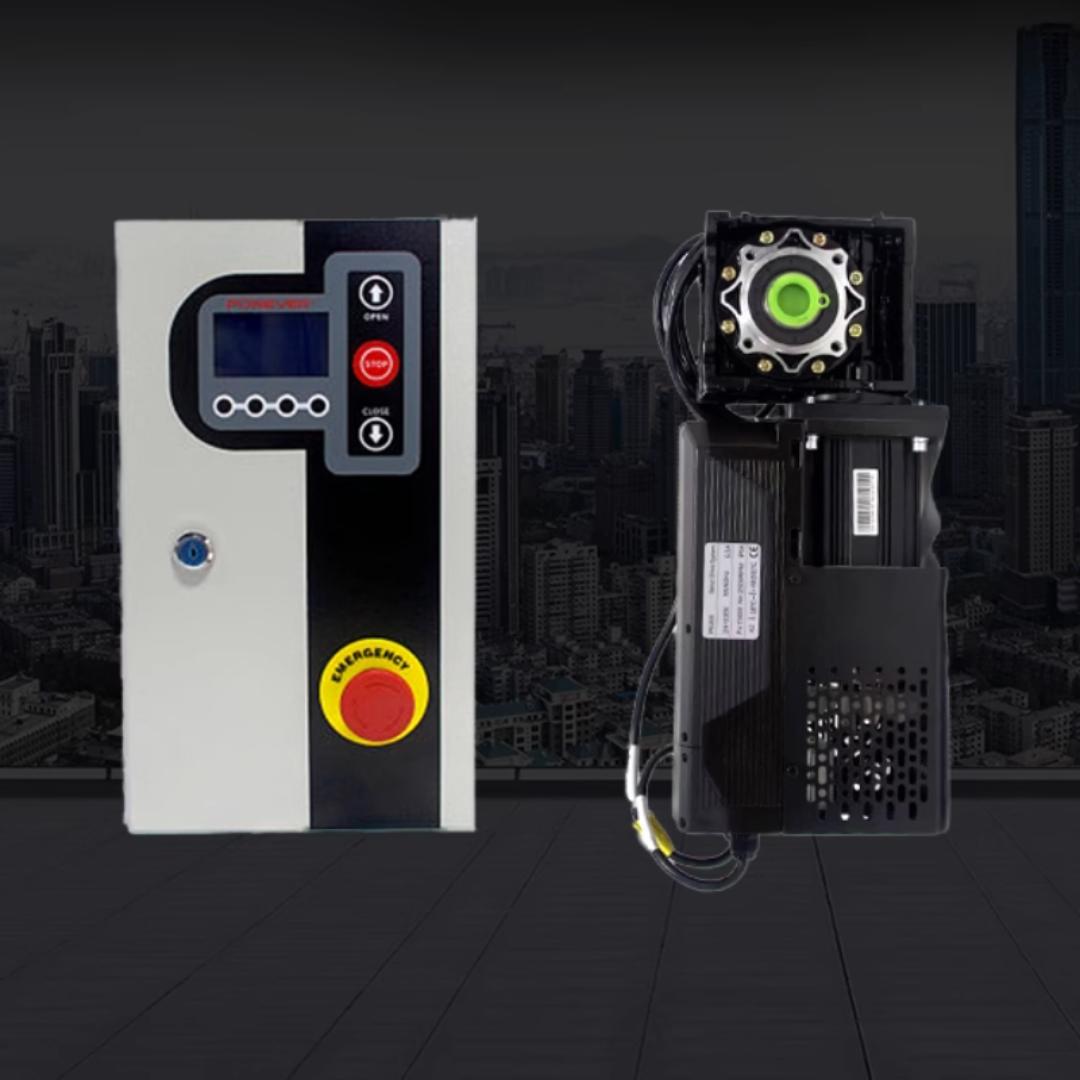

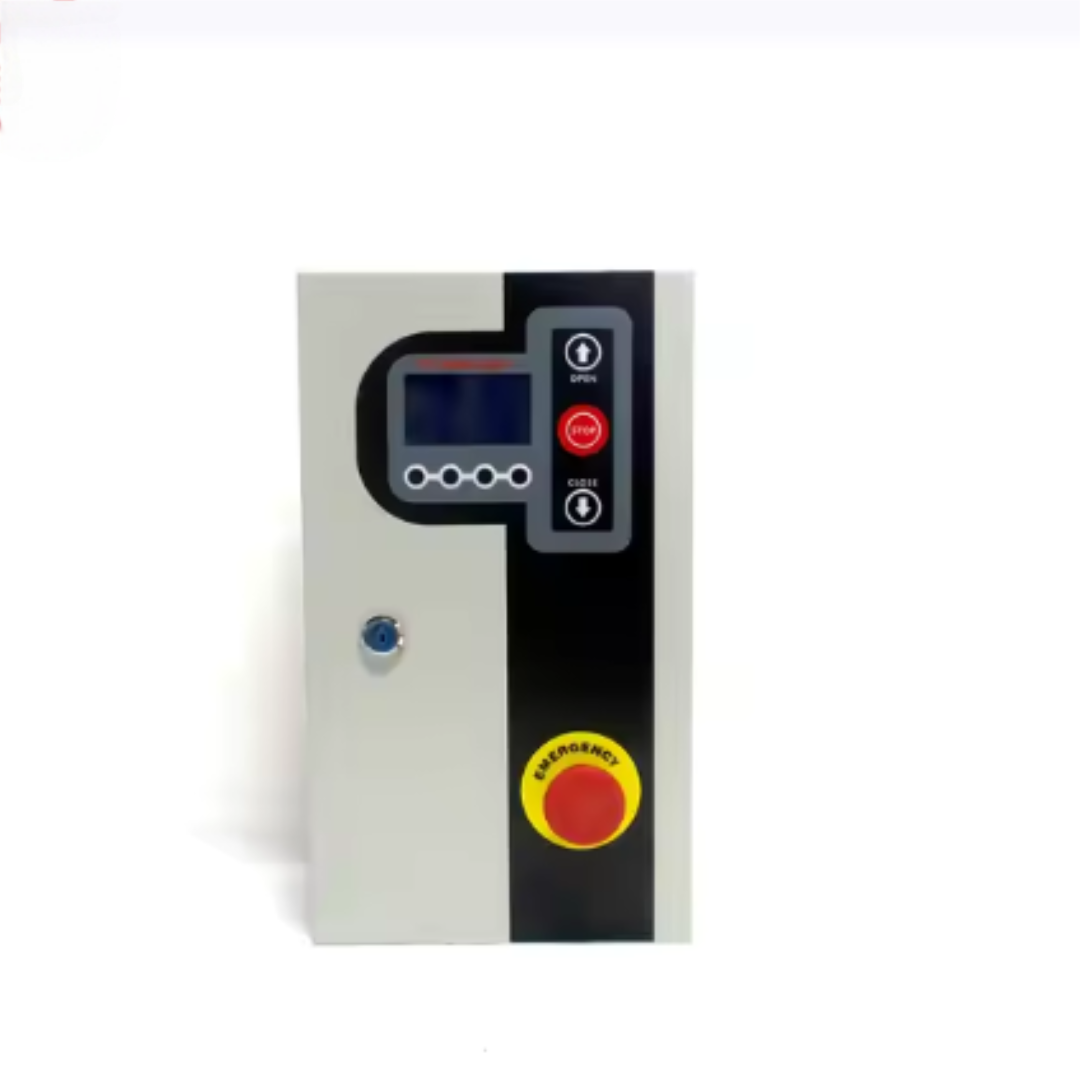

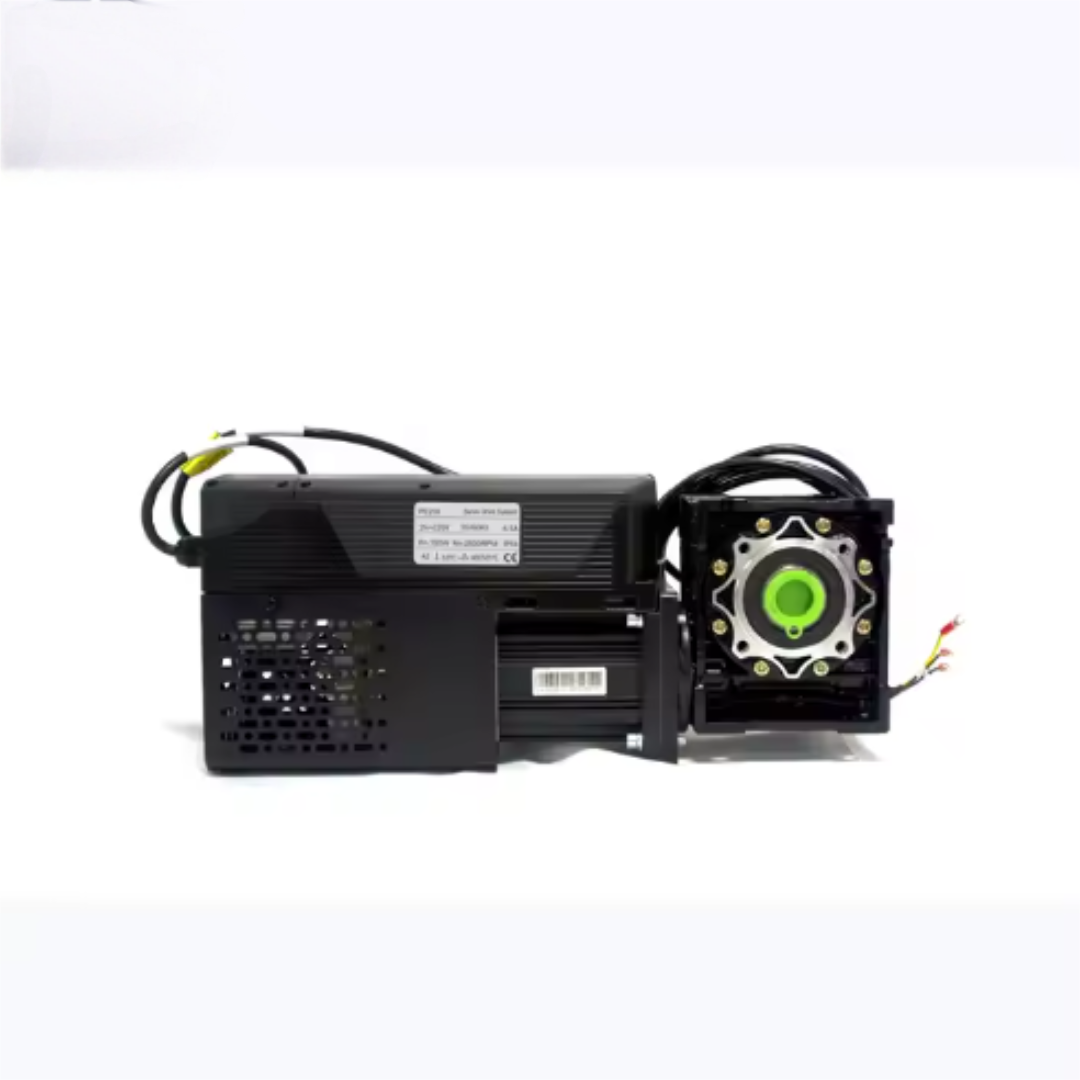

Soft Fast Gate Control System 1.5kw Servo Motor and Control Box

  • category:Malta Automatic Door Accessories
    The power of our high speed door servo system includes 0.75KW, 1.5KW, 2.2KW, 3.8KW. It can adapt to soft high-speed rolling door...
    Service Hotline: +8617538627299
  • Product Details

  • contact us

The power of our high speed door servo system includes 0.75KW, 1.5KW, 2.2KW, 3.8KW. It can adapt to soft high-speed rolling doors, soft high-speed stacking doors, hard turbine high-speed doors, the products have the characteristics of high speed, frequent start and stop, low temperature rise, closed-loop control, friendly interface, easy installation, etc., all products are 100% full load aging test before leaving the factory to ensure product quality. At the same time, the control system is designed with multiple protections such as short circuit protection, overload protection, overvoltage protection and overheat protection to ensure safe use.

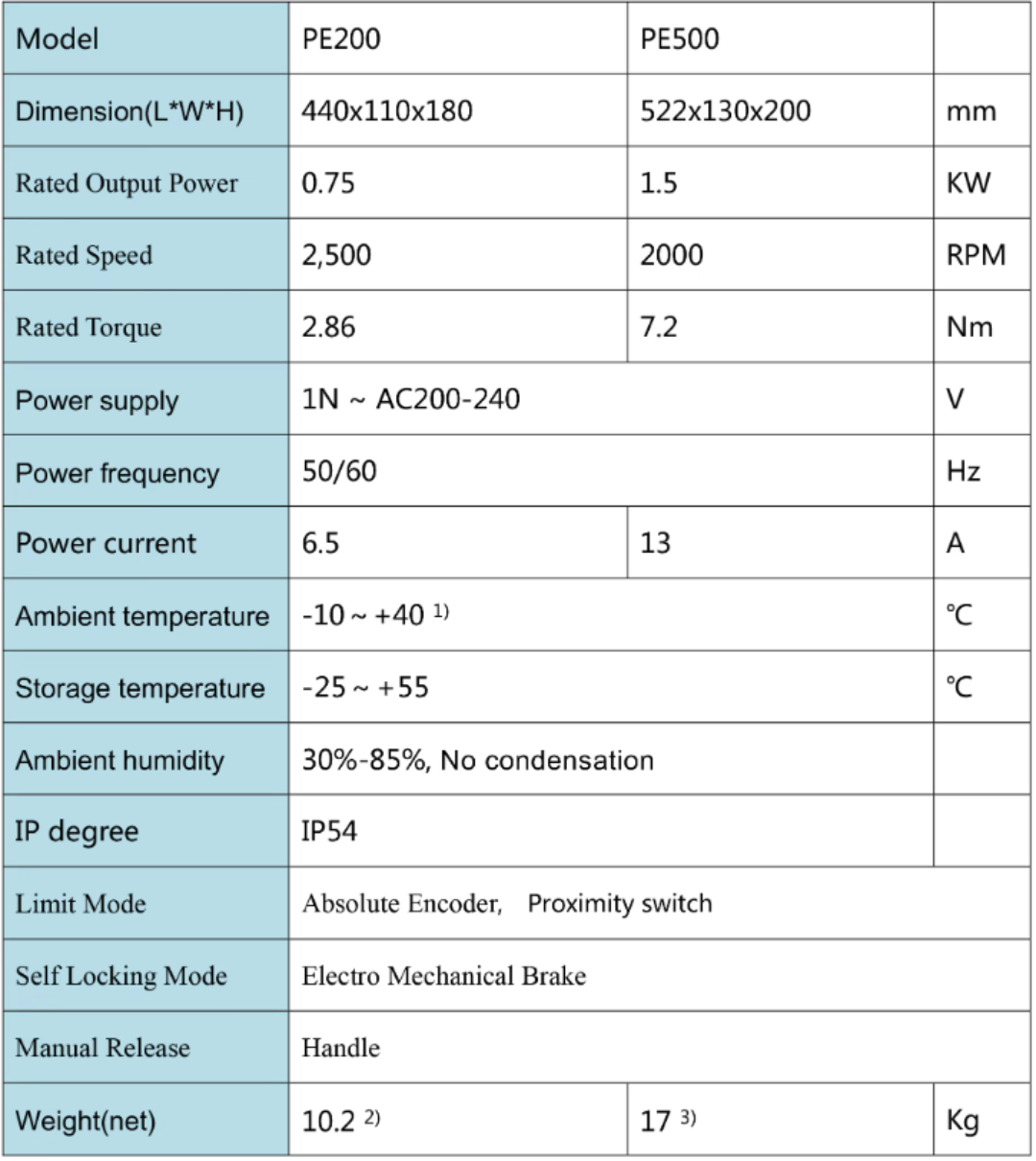

Specification for Motor



(1)When using a temperature range of -20~-10'ºC and +40~+50'ºC use half ofrated power output
(2)Weight includes RV50 reducer.
(3)Weight includes RV63 reducer.
