Zipper Structure Fast Action High Speed Rolling PVC Doors for Clean Room

category：Malta NEWS author：xiaozhi release time：2024-07-01 Views：5298

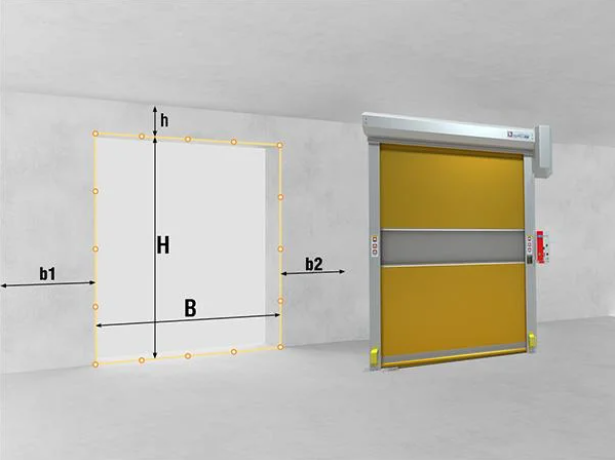

All measurements are made indoors and each value mustbe measured at at least three points:

H--the height of the doorway (the distance from the ground to the top of thedoorway)
B--the width of the door opening (the distance from the left edge of the dooropening to the right edge)
h--Above the doorway (the distance from the top of the doorway to theceiling) is generally reserved 600mm
b1/b2--The lateral distance of at least 200mm (the distance from thecorresponding edge of the door opening to the obstacle) is required to have500mm reserved on the side of the motor:

When measuring H and B, take the maximum value as the final dimension

When measuring h b1 b2, take the smallest value as the final size

Installation Specification Requirements

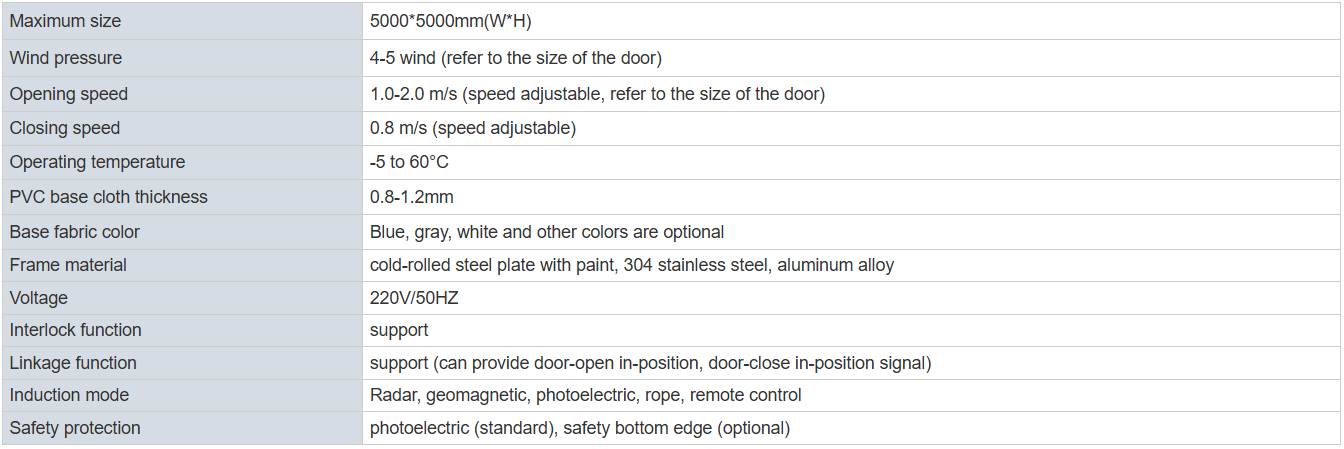

High speed door parameters

FAQ

1.Q:What is a high-speed zipper door?

A high-speed zipper door is a type of industrial door designed for rapid opening and closing, typically used in facilities where frequent traffic flow is required while maintaining environmental control.

2.Q:How does a high-speed zipper door operate?
The high-speed zipper door operates by utilizing a series of horizontal fabric panels connected by a zipper mechanism. When the door is activated, the zipper mechanism rapidly opens or closes the panels, allowing for quick access while minimizing air infiltration.

3.Q:What are the benefits of using a high-speed zipper door?
Some benefits of using a high-speed zipper door include improved energy efficiency, increased productivity due to faster traffic flow, enhanced environmental control by minimizing air exchange, and reduced maintenance costs compared to traditional doors.

4.Q:What industries commonly use high-speed zipper doors?
High-speed zipper doors are commonly used in various industries such as manufacturing facilities, warehouses, distribution centers, food processing plants, automotive facilities, and pharmaceutical environments where rapid access and environmental control are essential.

5.Can a high-speed zipper door be customized to fit specific requirements?
Yes, high-speed zipper doors can often be customized to fit specific size requirements, operational preferences, and environmental conditions. Options for customization may include door size, fabric material, color choices, safety features, and control systems to meet the unique needs of different applications.
